Fibre KVM Extenderkit, Emerald® KVM over IP 4K DisplayPort

High-performance KVM extension

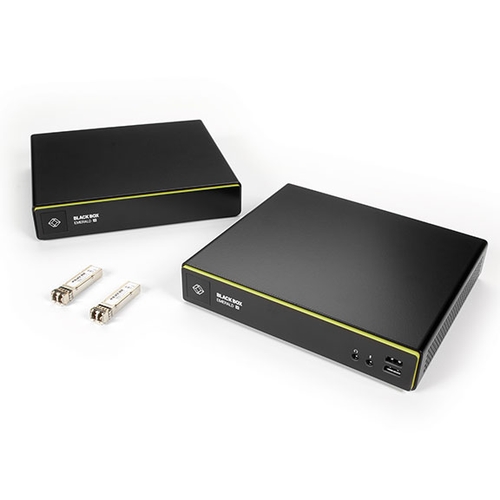

Get the industry’s highest-quality KVM extension. The Emerald 4K KVM Extender gives you everything you need for KVM extension of 4K60 DisplayPort 1.2 video as well as transparent USB 2.0 signals over multimode fibre cable.

Digital video at its best
Emerald video quality is eye catching. This KVM system supports pixel-perfect 4K DisplayPort video at 60 Hz. The solution provides image transmission with mathematical lossless compression that visualizes every single pixel at 60 fps with 10-bit color depth.

Simple system access
This kit is perfect for firms looking for compatible KVM extenders to secure workstations in a separate location from their monitors. This gives you easier system access for IT maintenance. Additionally, it reduces fan noise, heat emissions and electric interference in the workplace.

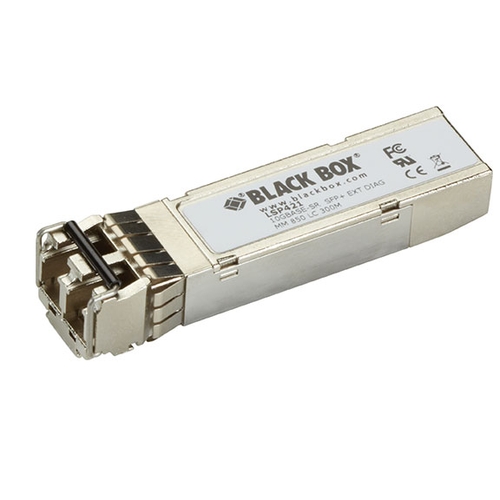

Powerful SFP+ included
This SFP+ optical transceiver enables you to adapt an SFP+ slot to a fibre interface for faster network speeds. It’s compact, interchangeable and hot swappable. The SFP+ features a metal enclosure that helps shield communications from EMI interference.
The EMD4000KIT comes with two exchangeable SFP+ transceivers supporting 850nm Multimode fibre connections up to 300m. Please call our tech support team if larger distances are requires.

EDID Support —
Transmitter: Internal EDID table in transmitter (can be updated from a receiver or manager)
Receiver: Internal EDID table in transmitter (can be updated from a receiver or manager)
Operating Systems Supported — Microsoft Windows Vista, XP, Windows 7, Windows 8, Server 2003, Server 2008, Server 2012, Linux, Solaris, Mac OS
Distance Supported —
Through included SFP+ transceiver: 850nm Multimode fibre up to 300m
General:
In direct Connect mode: CATx: 100 m; Fibre: 300 m to 10 km, based on SFP used;
In IP mode : Unlimited using IP rules

Indicators — on both units: (1) single bi-color LED (red/green);
Resolution — 4096 x 2160 @ 60 Hz

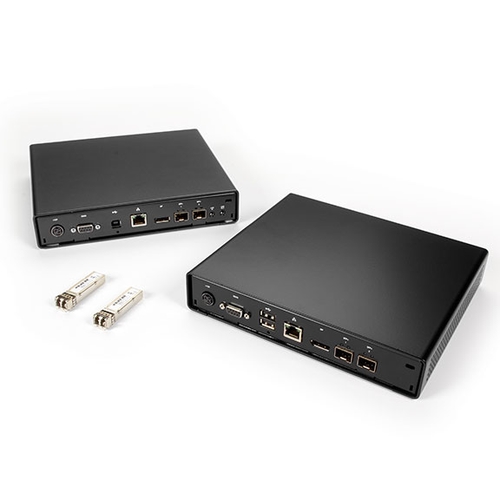

Connectors —
Transmitter:
(1) DisplayPort,
(1) USB Type B,
(2) 3.5mm audio jack,
(1) DB9 serial,
(1) RJ45,
(2) SFP+ slots
(1) Power;
Receiver:
(1) DisplayPort;
(4) USB Type B,
(2) 3.5mm audio jack,
(1) DB9 serial,
(1) RJ45,
(2) SFP+ slots, (one populated with 850nm Multimode LC SFP+ transceiver)
(1) Power
Housing —Aluminum outer case with plastic bezel
Power —
Transmitter: External desktop-style adapter, 100–240 VAC input, 12VD C, 3A connection to unit;
Receiver: External desktop-style adapter, 100–240VAC input, 12VDC, 3A connection to unit
Operating Temperature — 0° to 40° C (32° to 104°F)
Storage Temperature — -20° to 60° C (-4° to 140°F)
Humidity —Transmitter & Receiver: 5 to 95% non-condensing
Size —
Transmitter: 3.9H x 21.6W x 18.7D cm (1.5"H x 8.5"W x 7.4"D);
Receiver: 3.9H x 21.6W x 18.7D cm (1.5"H x 8.5"W x 7.4"D)
Weight —each unit 1.16 kg
Industry Certifications — Transmitter & Receiver: FCC, CE, RoHS

Compatibility Note:
• Emerald4K_Firmware_v6.0 firmware is compatible with other 6.0 endpoints.
• The EMD4000R can connect to the EMD4000T, EMD200DV-T, Emerald SE/PE Transmitters using 6.x firmware or higher, but not to
an Emerald SE/PE Receiver to an EMD4000T.
• Firmware 6.0 is not compatible with Firmware 1.4.
• EMD4000T cannot be accessed by any version of RemoteApp to date.

Transmitter (EMD4000T):
(1) Transmitter
(1) DisplayPort 1.2 cable
(1) USB 2.0 Type B Cable
(2) 3.5-mm audio cables
(1) 12-VDC power supply with power cord

Receiver (EMD4000R)
(1) Receiver
(1) 12-VDC power supply with power cord

(2) SFP+ (LSP421)
