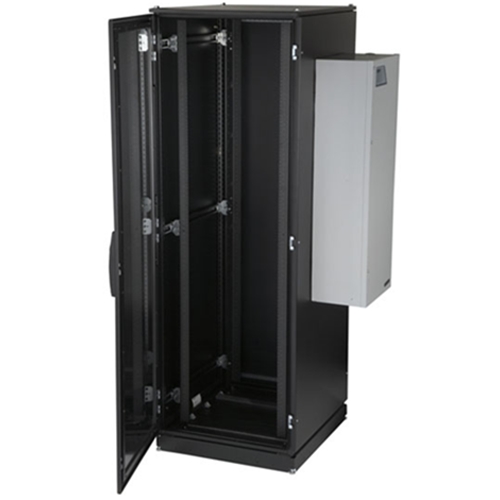

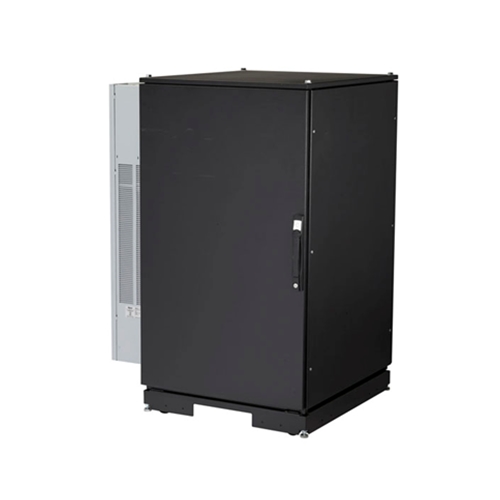

When you need to install rackmount equipment in less-than-ideal environments or in areas without existing cooling infrastructure, ClimateCab Server Cabinets are your answer. Their self-contained cooling system keeps your equipment housed in ideal conditions in virtually any location.
These units feature excellent access to equipment with removable, reversible doors and sides.
Air-Conditioning
These models are perfect for harsh environments and remote locations without cooling infrastructure. Air-Conditioning units keep equipment cool even with temperatures up to 55°C. A closed-loop cooling system recirculates air in the cabinet and keeps outside air out, while an internal evaporator eliminates condensation.

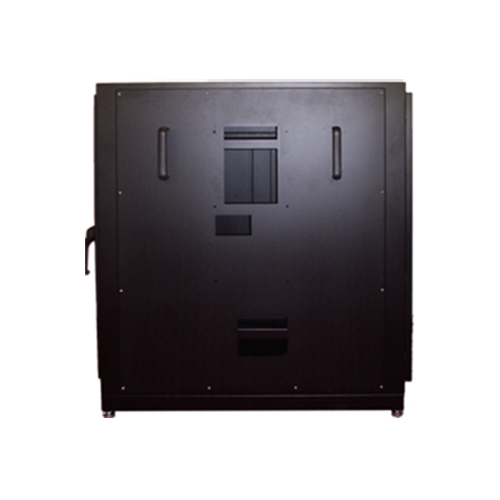

Cabinet sides are pre-machined to match the air conditioner. The sides are fixed to the cabinet using screws and a rubber gasket. Sturdy handles and hooks at the base of the side panel reduce the physical effort required to fit the air conditioner. Sealing gaskets supplied with the air conditioner are inserted around the edges of both apertures. No specialist tooling or skills are required to install the Climatecab Server Cabinet.
NOTE:ClimateCab Server Cabinets ship without the air-conditioner mounted. The air conditioner is secured to the cabinet by six bolts. Please consider the weight of the air conditioner and enlist the help of another person if necessary.
Additional Features
The cabinet includes front and rear rails and a bag of fixings for 19” equipment. Convenient studs are provided on the door and body for bonding and grounding, and earth bonding cables are also included. The cabinet is finished in satin black with a RAL7035 grey air conditioner outer case. Other colours are available on request. The side panel features a pair of handles and location hooks to make fitting by a single engineer possible. Front and rear doors feature three point locking. This ensures a tight seal around the entire edge of the door.
In order to eliminate condensation the air conditioner is equipped with a condensate evaporator. This prevents a build-up of condensed water on the condenser. The side location of the air conditioner is another reason why condensation can be kept from your valuable servers. The condensed mix is vented to the exterior of the cabinet to keep the interior completely dry.

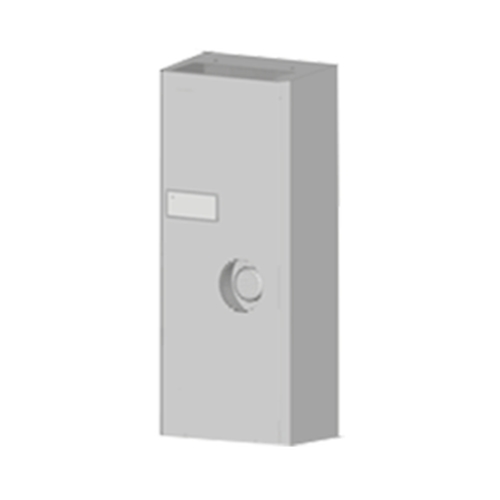

Note – Air conditioner appearance varies depending on voltage range and cooling capacity
Controls
The air conditioner can be run with no special controls set, however the settings may be modified to accommodate most applications by removing a panel and adjusting three DIP switches. A 5-wire connection block is supplied for wiring to a door open switch or alarm panel.
Door Open: A pair of connections may be used to stop the air conditioner from operating when the door is open. This prevents condensed water from collecting on the cold plates of the air conditioner.
Alarm: A pair of volt free contacts can be used to signal an alarm condition. Typically this is an over temperature and a pair of DIP switches enable the setting of the threshold for temperatures over 45, 50, 55 or 60°C. The connector block to attach the alarm and door open wires is included in the pack.
Temperature:The internal temperature of the cabinet may be set to 25, 30, 35 or 40°C by changing the position of the three DIP switches.
Cabinet Specification
Construction —
Body: Welded 14-gauge steel;
Frame: Welded 12-gauge steel;
Doors: 14-gauge solid steel;
Satin Black Powder Coat
Weight Capacity —680 kg
IP/NEMA Rating — IP52/ NEMA-12
Size — Cabinet + Listed AC Unit
RU, Height* x Cabinet Width** (Total Width Cabinet + AC) x Depth***
RM5008EU + RMAC870EU: 14U, 87.7 cm H x 68.0 cm W (91.1 cm TW) x 80.0 cm D
RM5007EU + RMAC950EU-R2: 24U, 132.1 cm H x 76.2 cm W (101 cm TW) x 111.4 cm D
RM5007EU + RMAC1500EU-R2: 24U, 132.1 cm H x 76.2 cm W (101cm TW) x 111.4 cm D
RM5030EU + RMAC2000EU-R2: 42U, 212.1 cm H x 76.2 cm W (100.2 cm TW) x 111.4 cm D
* Height Includes Casters
** Cabinet Width does not include removable side panel handle (where handle is included)
*** Depth does not include front and rear handles
Weight — Cabinet + Listed AC Unit
RM5008EU + RMAC870EU: 159.5 kg
RM5007EU + RMAC950EU-R2: 225 kg
RM5007EU + RMAC1500EU-R2: 228 kg
RM5030EU + RMAC2000EU-R2: 328 kg
Air Conditioner Specification
Cooling Capacity (EN14511) —
RMAC870EU: 870W;
RMAC950EU-R2: 1000W;
RMAC1500EU-R2: 1500W;
RMAC2000EU: 2000W;
Cooling Performance (EN14511) —
35° inside, 35° outside/ 35° inside, 50° outside
RMAC870EU: 870W/580W;
RMAC950EU-R2: 1000W/590W;
RMAC1500EU-R2: 1500W/850W;
RMAC2000EU-R2: 2000W/1440W;
Power Consumption —
RMAC870EU: 524/633W;
RMAC950EU-R2: 480/570W;
RMAC1500EU-R2: 770/820W;
RMAC2000EU-R2: 1047/1273W;
Airflow — internal/external
RMAC870EU: 300 m3/h
RMAC950EU-R2: 885 m3/h
RMAC1500EU-R2: 885 m3/h
RMAC2000EU-R2: 935/1260 m3/h
Noise Level —
RMAC870EUEU: <63 db(A)
RMAC2000EU-R2:<65 db(A)
Energy Efficiency Ratio —
RMAC950EU-R2: 2 COP
RMAC1500EU-R2: 1.9 COP
RMAC2000EU-R2: 1.91 COP
Ambient Temperature Range — + 15 to 55° C
Control Temperature Range — 25°, 30°, 35°, 40°, 45°
Refrigerant R134A —
RMAC2000EU-R2: 1200 g
All other cabs: 580 g
Condensate Management — Integrated condesate evaporation system with safety overflow (except RMAC870EU)
Protection (EN60529)— IP54 towards the electrical enclosure, IP34 towards the surroundings if used as intended by manufacturer
