Store home > Audio Video > Multiviewer > Quad MultiViewer - 4K60, HDMI, DisplayPort, VGA, 5x1
AVSC-0501QMV
Photo may vary from actual product

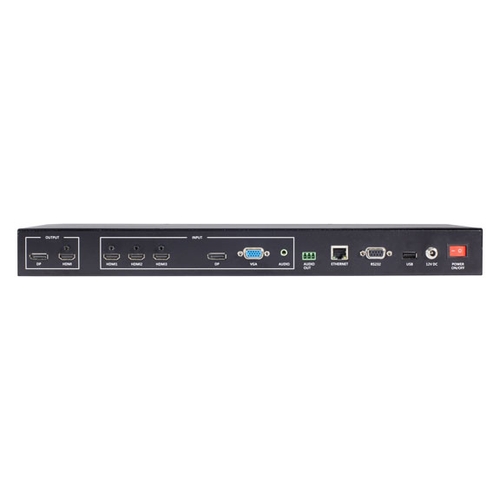

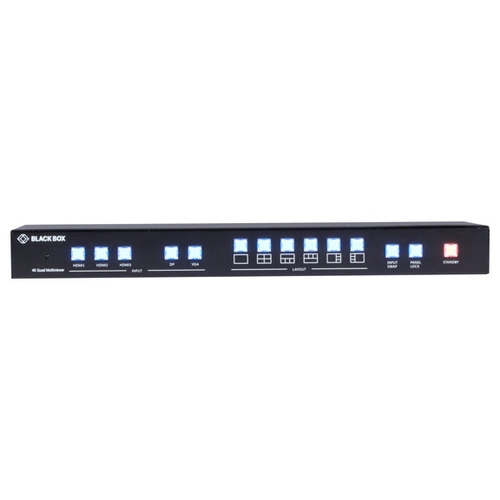

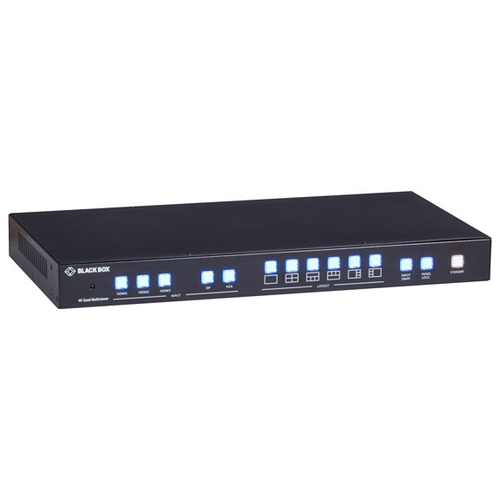

Quad MultiViewer - 4K60, HDMI, DisplayPort, VGA, 5x1
Quad MultiViewer - 4K60, HDMI, DisplayPort, VGA, 5x1


Quad MultiViewer - 4K60, HDMI, DisplayPort, VGA, 5x1


Simultaneously view four 4K60 4:4:4 video sources on one display.


  • Simultaneously view four video sources on one display in real time.
  • Seamless switching between input channels or screen layout modes.
  • 14 different screen layouts including (6) preset screen layouts and (8) extra customized screen layouts.
  • Images can be rotated, enlarged and flipped.
  • Input resolution up to 4K @ 60 Hz, 4:4:4 color sampling.
  • Output resolution up to 4K @ 60 Hz, 4:4:4 color sampling.
  • HDMI out supports full screen/PIP/POP/Multiview, DisplayPort out shows a loop through of the input.
  • Deep Color and HDCP 1.4 / 2.2.
  • Rotation R90°/ L90° or flip output in full screen layout.
  • Dolby Digital® 5.1, DTS® 5.1 and uncompressed 7.1 linear PCM audio includes stereo analog audio input, stereo audio output.
  • Front panel button, IR remote, RS-232/Telnet and Web UI control
  • USB port firmware upgrade.

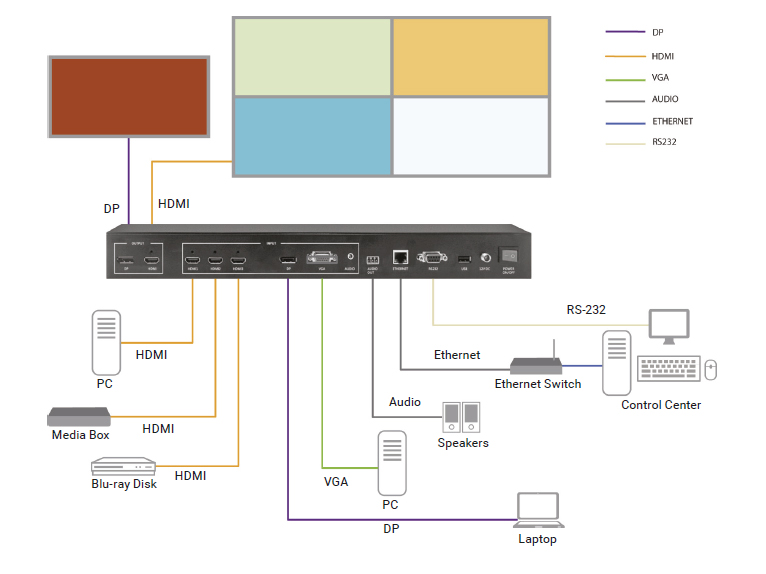

  • In control rooms, operators can view data feeds from monitoring equipment on one screen.
  • In conference rooms and classrooms, users can share their laptop screens and other information.

  Product       Code   Unit price   Quantity


Quad MultiViewer - 4K60, HDMI, DisplayPort, VGA, 5x1

Quad MultiViewer - 4K60, HDMI, DisplayPort, VGA, 5x1
  AVSC-0501QMV Last Time Buy
26 000,00 kr

"Last Time Buy" indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items.



Actions
Datasheets
Quad MultiViewer - 4K60, HDMI, DisplayPort, VGA, 5x1 Datasheet
Manuals
Quad MultiViewer - 4K60, HDMI, DisplayPort, VGA, 5x1 Manual
