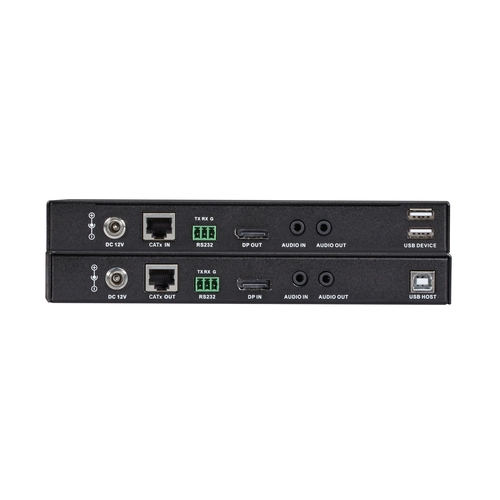

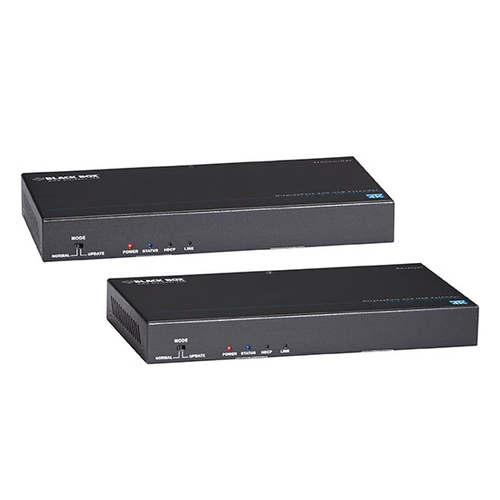

UVX-DP-TP-100M: DisplayPort 1.2, RS232, USB, 100m, Extender Kit
Photo may vary from actual product
A/V Extender – 4K DisplayPort, Audio, USB 2.0 & RS232
A/V Extender – 4K DisplayPort, Audio, USB 2.0 & RS232


A/V Extender – 4K DisplayPort, Audio, USB 2.0 & RS232


Extend 4K DisplayPort audio and video, USB, serial, and power up to 100m over a single CATx cable.


  • This Extender Kit can be used to access distant AV sources or even to control remote computers.
  • Extend your signals as far as 100m over CAT6A/CAT7 cables.
  • Newest HDBaseT technology for the highest quality and reliability.
  • Get brilliant video by transmitting uncompressed, native 4K @ 30 Hz UHD DisplayPort signals.
  • Supports resolutions up to 4K, including 3840 x 2160 and 1080p/60 Deep Color.
  • Simultaneously transmits bidirectional analog stereo audio.
  • It’s also a KVM extender supporting USB keyboard and mouse or other peripheral signals with USB 2.0 pass-through.
  • The receiver can be power over the line (48 V PoH Power over HDBaseT) eliminating the need for an additional power socket at the display.
  • HDCP 2.2 compliant for protected video contents and EDID transmission for trouble-free display settings.
  • Easy, plug-and-play setup. No software or drivers to install.

Share |
  Product       Code   Unit price
DisplayPort 1.2, RS232, USB
100m

Extender Kit
  A/V Extender – 4K DisplayPort, Audio, USB 2.0 & RS232
A/V Extender – 4K DisplayPort, Audio, USB 2.0 & RS232
  UVX-DP-TP-100M   Sign in to view prices

Accessories

  Product     Code   Unit price

  DisplayPort Cable - Video Cable, DisplayPort to DisplayPort, M/M, 0.9m
DisplayPort Cable
  VCB-DP-0003-MM   Sign in to view prices
  DisplayPort Cable - Video Cable, DisplayPort to DisplayPort, M/M, 1.8m
DisplayPort Cable
  VCB-DP-0006-MM   Sign in to view prices
