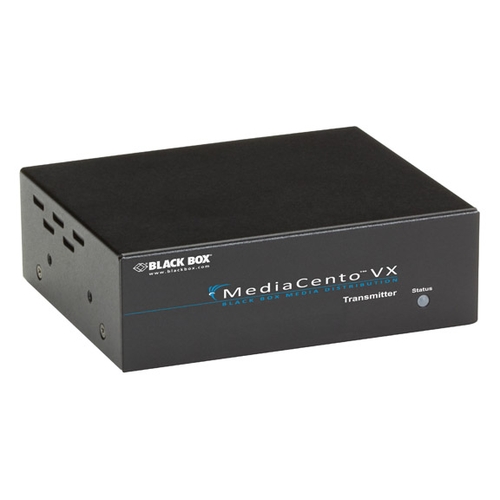

AVX-VGA-TP-TX: VGA, audio, RS232, Range depending on Receiver, Transmitter
Photo may vary from actual product
AVX-VGA-TP-TX: VGA, audio, RS232, Range depending on Receiver, Transmitter

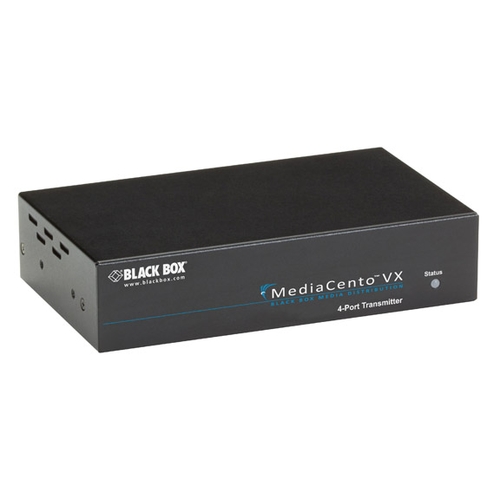

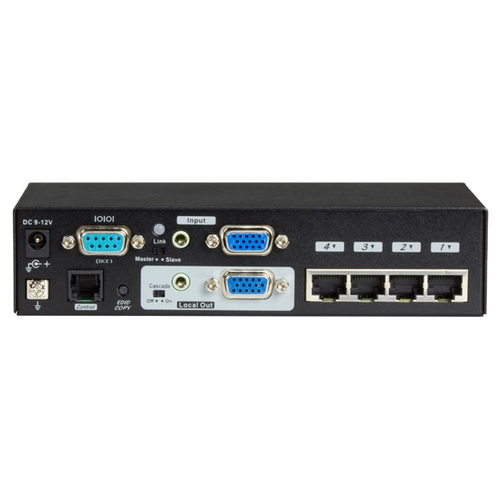

AVX-VGA-TP-TX-4: VGA, audio, RS232, Range depending on Receiver, Transmitter 1x4
AVX-VGA-TP-TX-4: VGA, audio, RS232, Range depending on Receiver, Transmitter 1x4

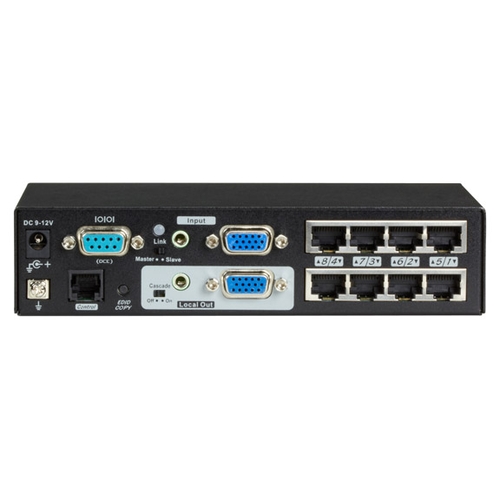

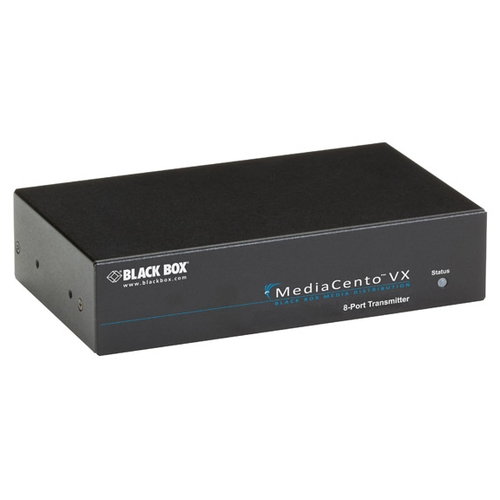

AVX-VGA-TP-TX-8: VGA, audio, RS232, Range depending on Receiver, Transmitter 1x8
AVX-VGA-TP-TX-8: VGA, audio, RS232, Range depending on Receiver, Transmitter 1x8
AVX-VGA-TP-SRX: VGA, audio, RS232, 150m, Receiver
AVX-VGA-TP-SRX: VGA, audio, RS232, 150m, Receiver
AVX-VGA-TP-LRX: VGA, audio, RS232, 300m, Receiver
AVX-VGA-TP-LRX: VGA, audio, RS232, 300m, Receiver


MediaCento VX


Economically broadcast VGA video, stereo audio, and serial signals over CATx —and easily manage groups of ports.


  • Use ordinary CATx cable instead of expensive VGA cable to extend high-quality multimedia.
  • Broadcasts high-quality VGA plus audio and serial signals over standard UTP cabling.
  • Features an icon-based GUI for easily managing the system.
  • Supports VGA resolutions up to 1920 x 1200 (or 1920 x 1080).
  • Extends video up to 300 m (long range receiver) or more than 600m with cascadable receivers.
  • Long-range receivers feature advanced skew compensation, sharpness, and brightness controls.
  • Local video and audio ports for plugging in a monitor and speakers at the source.
  • Enables independently turning on/off of video and audio ports.
  • Automatically detects and indicates signal from the video source.
  • EDID copy function for optimal PC-to-screen performance.
  • 3.5-mm stereo jacks for audio and speaker connections.
  • For serial device extensions, transmits RS-232 (TX/GND) signals.

Share |
  Product       Code   Unit price
VGA, audio, RS232
Range depending on Receiver

Transmitter
  MediaCento VX
MediaCento VX
  AVX-VGA-TP-TX   Sign in to view prices

Transmitter 1x4
  MediaCento VX
MediaCento VX
  AVX-VGA-TP-TX-4   Sign in to view prices

Transmitter 1x8
  MediaCento VX
MediaCento VX
  AVX-VGA-TP-TX-8   Sign in to view prices
150m

Receiver
  MediaCento VX
MediaCento VX
  AVX-VGA-TP-SRX   Sign in to view prices
300m

Receiver
  MediaCento VX
MediaCento VX
  AVX-VGA-TP-LRX   Sign in to view prices
Select either a 1-Port Transmitter or a 4-/8-Port Transmitter for wider distribution.
The 4-/8-port transmitters can be cascaded to a max of 3 in a chain.
Choose one receiver per display connected to the system.
Use the cacascadable receiver to add more distance/displays.
