Store home > KVM Switches and Extenders > KVM Extenders > DVI KVM Extenders > Fibre > Fibre DKM Extender Kit – DVI, USB, audio, serial
AMS9201A: Extender Kit, Multi- & Singlemode, (1) SingleLink DVI-D, bidirect. analog Audio + RS232 + (2) USB 2.0 (36Mbps)
Photo may vary from actual product
AMS9202A: Extender Kit, Multi- & Singlemode, (2) SingleLink DVI-D, USB HID, Audio, RS-232

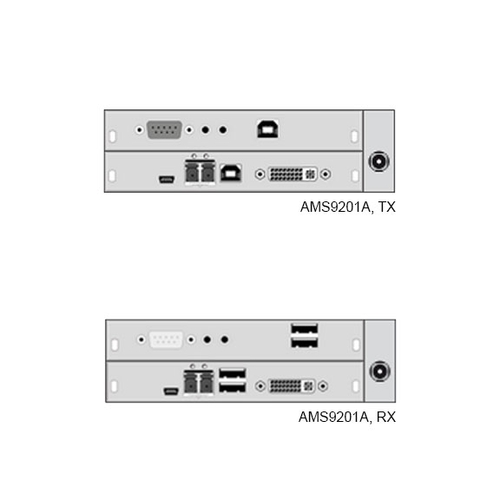

AMS9201A: Extender Kit, Multi- & Singlemode, (1) SingleLink DVI-D, bidirect. analog Audio + RS232 + (2) USB 2.0 (36Mbps)
AMS9202A: Extender Kit, Multi- & Singlemode, (2) SingleLink DVI-D, USB HID, Audio, RS-232
AMS9203A: Extender Kit, Multi- & Singlemode, (2) SingleLink DVI-D, USB HID, 4x USB 2.0, Audio, RS232

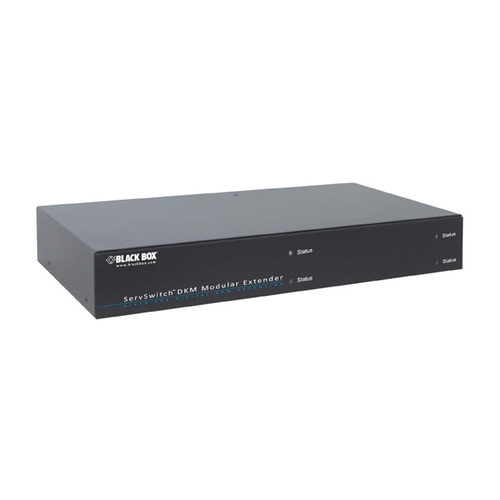

Fibre DKM Extender Kit – DVI, USB, audio, serial


Extend DVI and peripherals signals up to 10km over fibre.


  • Point-to-Point extension of Single Link DVI, USB HID and optional also embedded USB 2.0, serial and analog audio.
  • Models with one or two DVI channel available.
  • Distances up to 1km (multi-mode) or even 10km (single-mode) using a single interconnect cable.
  • Pixel perfect resolution up to 2048 x 1152 Single Link DVI.
  • Local monitoring with separate splitter cable (ACXSPL12).
  • Easy integration into the DKM FX HD Video and Peripheral Matrix Switch System.

Share |
  Product       Code   Unit price
Extender Kit
Multi- & Singlemode
(1) SingleLink DVI-D

bidirect. analog Audio + RS232 + (2) USB 2.0 (36Mbps)
  Fibre DKM Extender Kit – DVI, USB, audio, serial
Fibre DKM Extender Kit – DVI, USB, audio, serial
  AMS9201A   Sign in to view prices
(2) SingleLink DVI-D

USB HID, Audio, RS-232
  Fibre DKM Extender Kit – DVI, USB, audio, serial
Fibre DKM Extender Kit – DVI, USB, audio, serial
  AMS9202A   Sign in to view prices

USB HID, 4x USB 2.0, Audio, RS232
  Fibre DKM Extender Kit – DVI, USB, audio, serial
Fibre DKM Extender Kit – DVI, USB, audio, serial
  AMS9203A   Sign in to view prices

Accessories

  Product     Code   Unit price

Rack/Mount Kit
  19" Rackmount Ears for 2-Slot DKM Modular Extenders
19" Rackmount Ears for 2-Slot DKM Modular Extenders
  ACXMODHEAR2   Sign in to view prices
  19" Rackmount Ears for 4-Slot DKM Modular Extenders
19" Rackmount Ears for 4-Slot DKM Modular Extenders
  ACXMODHEAR4   Sign in to view prices
  Table/Wallmount Kit for 2-/4-slot DKM Modular Extenders
Table/Wallmount Kit for 2-/4-slot DKM Modular Extenders
  ACXMODH-DMK   Sign in to view prices
  Table/Wallmount Kit for 6-slot DKM Modular Extenders
Table/Wallmount Kit for 6-slot DKM Modular Extenders
  ACXMODH-R2-TMK   Sign in to view prices
  19" Rackmount Shelf for 2-/4-/6-slot DKM Modular Extenders
19" Rackmount Shelf for 2-/4-/6-slot DKM Modular Extenders
  ACXMODH-RMK   Sign in to view prices
Power Supply
  Redundant Power Supply for 2-Slot Chassis ACXMODH2R
Redundant Power Supply for 2-Slot Chassis ACXMODH2R
  ACXMODH2-PS   Sign in to view prices
  Redundant Power Supply for 4-Slot Chassis ACXMODH4R
Redundant Power Supply for 4-Slot Chassis ACXMODH4R
  ACXMODH4-PS   Sign in to view prices
  Single Link DVI Splitter Cable - 2 port
Single Link DVI Splitter Cable
  ACXSPL12-S   Sign in to view prices
