Pinning DB25

Pinning DB25 Connector

__________________________________________________________________ ___________________________________________

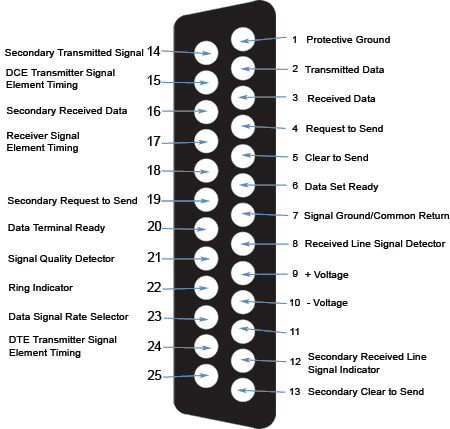

BLZ 141 RS-232 (DB25) image

DB25 for a RS-232 Interface

__________________________________________________________________ ___________________________________________

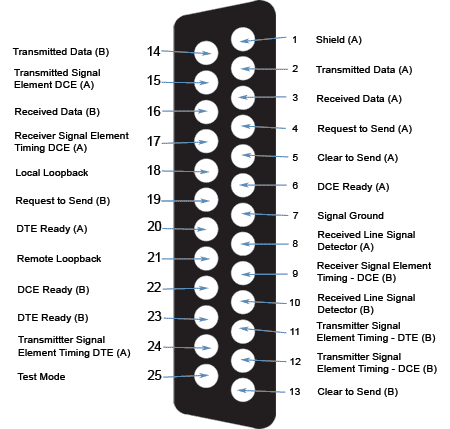

BLZ 141 RS-530 (DB25) image

DB25 for a RS-530 Interface

Back to DB-Type Connectors
